DSV Valve Extension Adapter Radium Engineering

20-1035 DSV ZŁĄCZE PRZEDŁUŻENIA ZAWORU

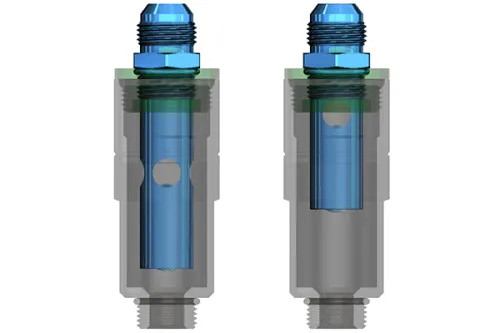

When installed with a DSV, this extension adapter will effectively move the air shut-off point higher in the system.

This will efficiently speed the refueling process by preventing dump can chugging. Radium DSV valves are not included

SPECYFIKACJE

  • Material: Anodized 6061 Aluminum
  • Installed Height: 4-1/16" (103mm)
  • Outer Diameter: 1-7/8" (47.6mm)
  • Large Hex: 1-11/16" (42.5mm)
  • Male Threads: 12AN ORB (1-1/16"-12)
  • Female Threads: 12AN ORB (1-1/16"-12)
  • O-Ring: FKM (Viton)

UWAGI

  1. Any of the current Radium Engineering DSV valve offerings can be installed into this adapter to customize the shut-off point.
  2. If fuel ever ejects from the dry break receiver vent (during or after refueling), the shut-off point is too high in the system.
Darmowa dostawa
301.99 zł
Niedostępny
Kod produktu USA-RAD-20-1035
Producent Radium Engineering
Zwrot produktu 14 dni
Gwarancja 24 miesiące
Odbiór w sklepie Sprawdź
Dostawa do: STANY ZJEDNOCZONE AMERYKI (0% VAT)
USPS

20-1035 DSV ZŁĄCZE PRZEDŁUŻENIA ZAWORU

When installed with a DSV, this extension adapter will effectively move the air shut-off point higher in the system.

This will efficiently speed the refueling process by preventing dump can chugging. Radium DSV valves are not included

SPECYFIKACJE

  • Material: Anodized 6061 Aluminum
  • Installed Height: 4-1/16" (103mm)
  • Outer Diameter: 1-7/8" (47.6mm)
  • Large Hex: 1-11/16" (42.5mm)
  • Male Threads: 12AN ORB (1-1/16"-12)
  • Female Threads: 12AN ORB (1-1/16"-12)
  • O-Ring: FKM (Viton)

UWAGI

  1. Any of the current Radium Engineering DSV valve offerings can be installed into this adapter to customize the shut-off point.
  2. If fuel ever ejects from the dry break receiver vent (during or after refueling), the shut-off point is too high in the system.
