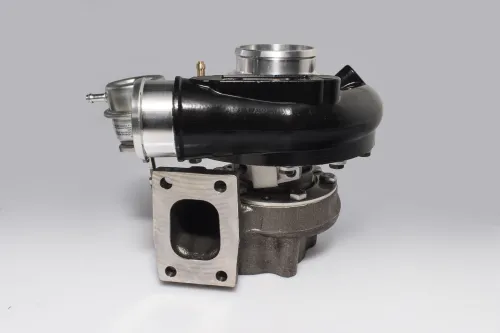

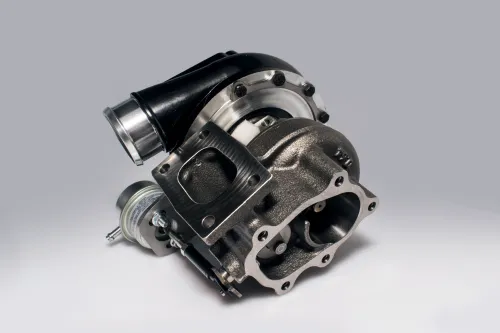

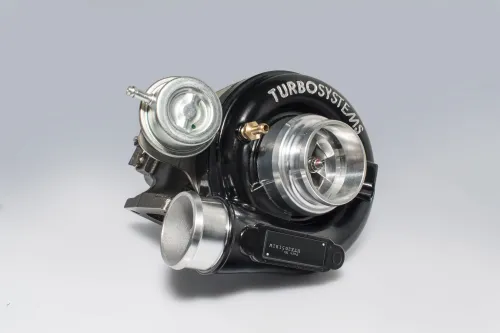

Turbosprężarka TurboSystems HTX2651B1W air outlet 90 degrees

High performance turbocharger with 8cm2, 0.61AR T25/T2 single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

Power range:350-450 HP;

Compressor side:

Ported shroud compressor housing;
Compressor wheel:in-house made, reinforced 51/63 mm 9+0 blades machined from the solid aluminium;
Intake:
- Straight compressor housing - 63mm (2,5");

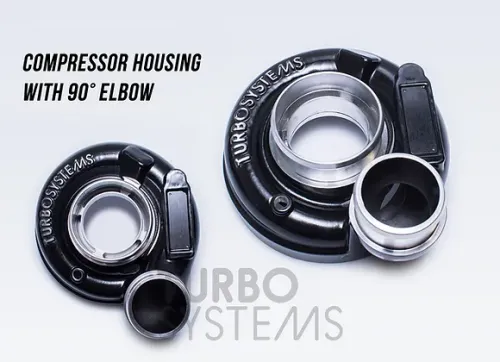

- Compressor housing with 90° elbow - 76mm (3");
Air outlet:51mm (2");

Core:

Bearings: dual ceramic ball bearings;
Cooling: water cooling with 2 x M14x1.5 ports;
Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

Housing:single scroll, 8cm2 AR: 0.61;
Turbine wheel:custom design 55/49mm 10 blades;
Flange:T25/T2 single scroll;
Exhaust connection:"Garrett" style exhaust flange;

Included Oil drain flange

Darmowa dostawa

4969.99 zł

Wyślemy dzisiaj!

Kod produktu	HTX2651B1W-90
Producent	Turbosystems
Zwrot produktu	14 dni
Gwarancja	24 miesiące
Odbiór w sklepie	Sprawdź

Dostawa do: STANY ZJEDNOCZONE AMERYKI (0% VAT)

Description

Power range:350-450 HP;

Compressor side:

Ported shroud compressor housing;
Compressor wheel:in-house made, reinforced 51/63 mm 9+0 blades machined from the solid aluminium;
Intake:
- Straight compressor housing - 63mm (2,5");
- Compressor housing with 90° elbow - 76mm (3");
Air outlet:51mm (2");

Core:

Bearings: dual ceramic ball bearings;
Cooling: water cooling with 2 x M14x1.5 ports;
Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

Housing:single scroll, 8cm2 AR: 0.61;
Turbine wheel:custom design 55/49mm 10 blades;
Flange:T25/T2 single scroll;
Exhaust connection:"Garrett" style exhaust flange;

Included Oil drain flange
