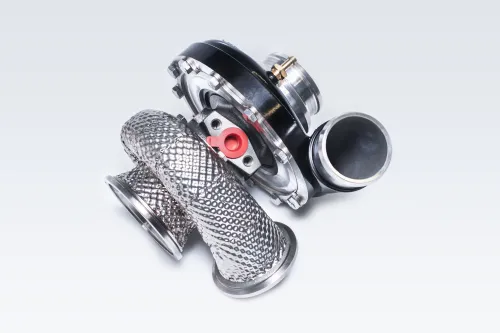

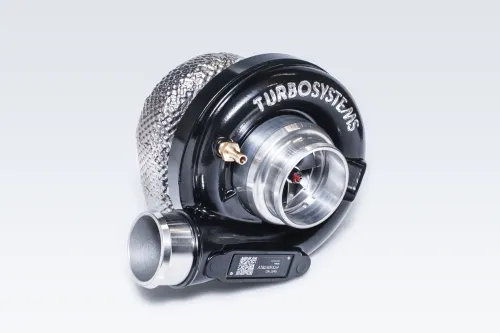

High performance turbocharger wtih 8cm2, 0.61AR single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
o Power range: 400-500 HP;

This turbocharger comes with 2 V-band sets (for turbine flange and exhaust).

Compressor side:
Ported shroud compressor housing;

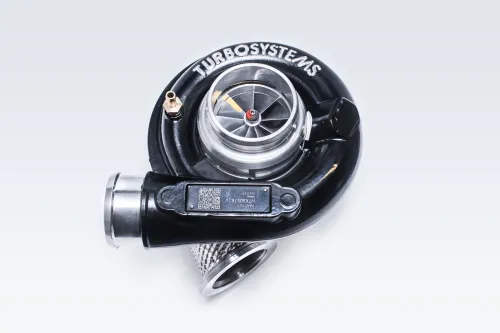

Compressor wheel: in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium;
Intake:

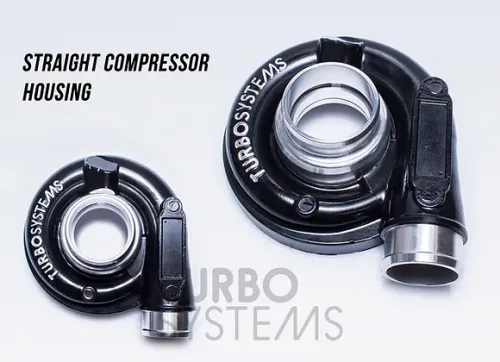

Straight compressor housing - 63mm;
(2,5")Compressor housing with 90° elbow - 76mm (3");
Air outlet: 51mm (2");

Core:
Bearings: dual ceramic ball bearings;
Cooling: water cooling with 2 x M14x1.5 ports;
Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:
Housing: single scroll , 8cm2 AR: 0.61;

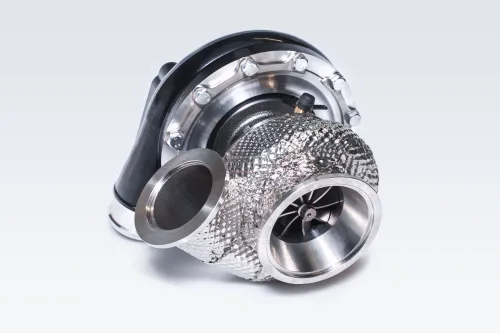

Turbine wheel: custom design 60/55mm 9 blades;
Flange: 2.25" V-band single scroll;
Exhaust connection: 3" V-band clamp;
