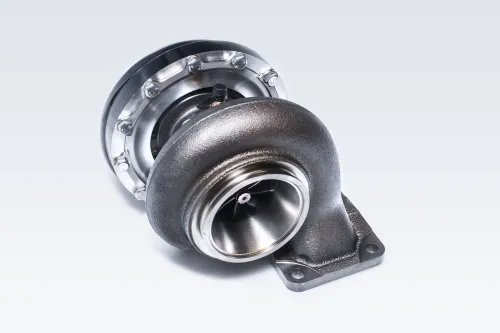

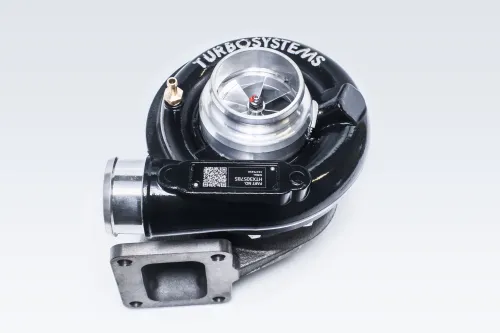

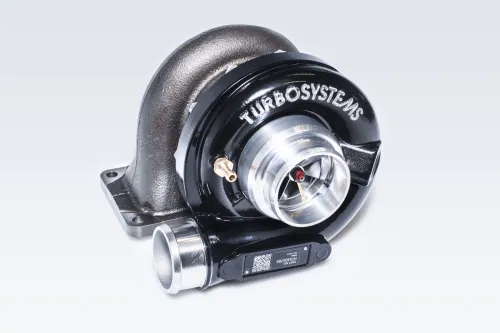

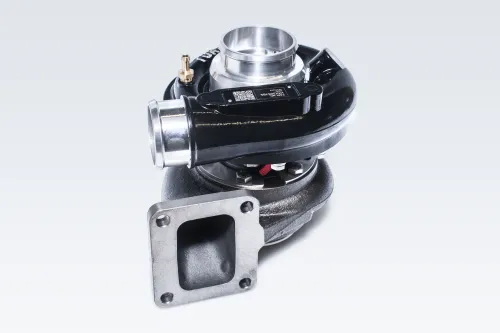

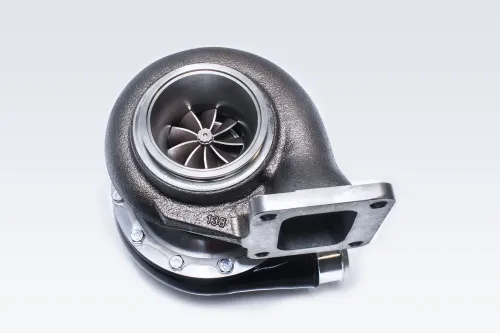

Turbosprężarka TurboSystems HTX3057B5 air outlet 90 degrees

High performance turbocharger wtih 14cm2, 1.05 AR single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

Power range:470-570 HP;

Compressor side:

Ported shroud compressor housing;
Compressor wheel:in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium;
Intake:
- Straight compressor housing - 63mm (2,5");
- Compressor housing with 90° elbow - 76mm (3");
Air outlet:51mm (2");

Core:

Bearings: dual ceramic ball bearings;
Cooling: water cooling with 2 x M14x1.5 ports;
Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

Housing:single scroll , 14cm2 AR: 1.05;
Turbine wheel:custom design 60/55mm 9 blades;
Flange: 3"T3 single scroll;
Exhaust connection:3" V-band clamp;

Included Vband clamp and Oil drain flange

Darmowa dostawa

4849.99 zł

Niedostępny

Kod produktu	HTX3057B5-90
Producent	Turbosystems
Zwrot produktu	14 dni
Gwarancja	24 miesiące
Odbiór w sklepie	Sprawdź

Dostawa do: STANY ZJEDNOCZONE AMERYKI (0% VAT)

Description

Power range:470-570 HP;

Compressor side:

Ported shroud compressor housing;
Compressor wheel:in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium;
Intake:
- Straight compressor housing - 63mm (2,5");
- Compressor housing with 90° elbow - 76mm (3");
Air outlet:51mm (2");

Core:

Bearings: dual ceramic ball bearings;
Cooling: water cooling with 2 x M14x1.5 ports;
Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

Housing:single scroll , 14cm2 AR: 1.05;
Turbine wheel:custom design 60/55mm 9 blades;
Flange: 3"T3 single scroll;
Exhaust connection:3" V-band clamp;

Included Vband clamp and Oil drain flange
