Pedały Wilwood 340-13574 Swing Mount Clutch / Brake Pedal
Pedały Wilwood 340-13574 Swing Mount Clutch / Brake Pedal
Pedały Wilwood 340-13574 Swing Mount Clutch / Brake Pedal
Pedały Wilwood 340-13574 Swing Mount Clutch / Brake Pedal
Wilwood

Pedały Wilwood 340-13574 Swing Mount Clutch / Brake Pedal

Ostatnie sztuki

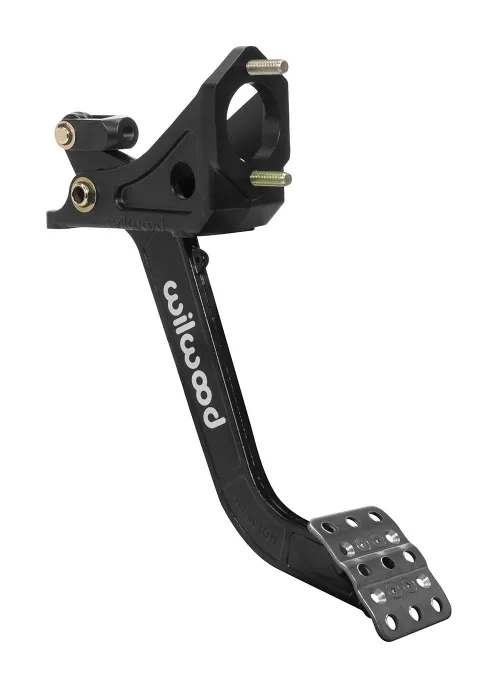

Reverse Swing Mount Clutch / Brake Pedal

This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6;1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.

Caution: Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications

Pedal Type
Material Aluminum
Finish Black E-coat
Pedal Description
Mount Loc Swing
Mount Facing Reverse
Balance Bar No
Mount Length (in) 11.28
Pedal Ratio & Length
Pedal 1 Ratio 6.0 to 1
Pedal 2 Ratio
Pedal 1 Length (in) 12.02
Pedal 2 Length (in)

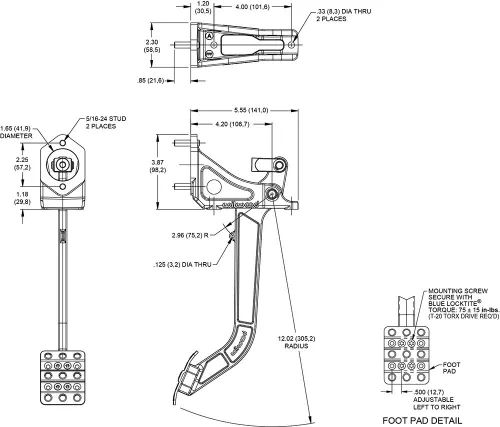

Pedal Dimensions

Additional Pedal Dimensions
Mount Length (in) 11.28
Pedal 1 Length (in) 12.02
Darmowa dostawa
508.99 zł
Wyślemy jutro!
Kod produktu WIL-340-13574
Producent Wilwood
Zwrot produktu 14 dni
Gwarancja 24 miesiące
Odbiór w sklepie Sprawdź
Dostawa do: STANY ZJEDNOCZONE AMERYKI (0% VAT)
USPS
Bezpieczne płatności online
Applepay Bancontact Blik Cb Eps Googlepay Ideal Inpostpay Klarna Link Mastercard Mb_way Mobilepay Paypal Przelewy24 Revolut Stripe Twint Visa

Reverse Swing Mount Clutch / Brake Pedal

This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6;1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.

Caution: Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications

Pedal Type
Material Aluminum
Finish Black E-coat
Pedal Description
Mount Loc Swing
Mount Facing Reverse
Balance Bar No
Mount Length (in) 11.28
Pedal Ratio & Length
Pedal 1 Ratio 6.0 to 1
Pedal 2 Ratio
Pedal 1 Length (in) 12.02
Pedal 2 Length (in)

Pedal Dimensions

Additional Pedal Dimensions
Mount Length (in) 11.28
Pedal 1 Length (in) 12.02
